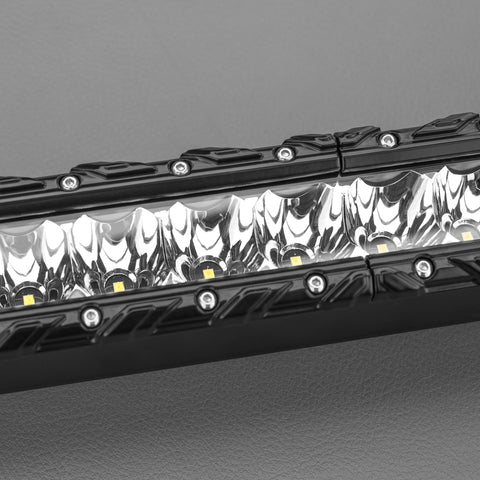

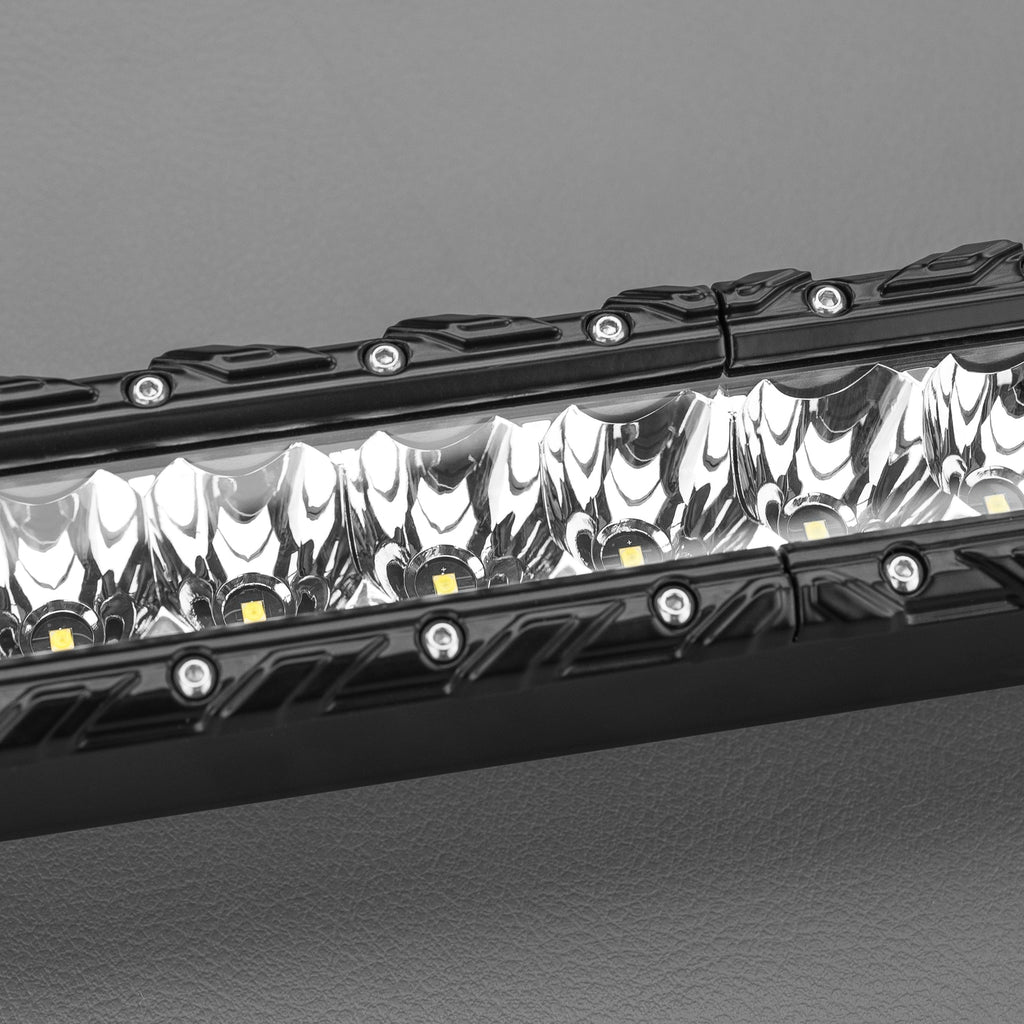

STEDI ST3K 31.5" 30 LED Slim LED Light Bar

  • Sale
  • Regular price R 7,999.00
  • Sold Out
Tax included. Shipping calculated at checkout.






THE DEFINITION OF CALIBRE.

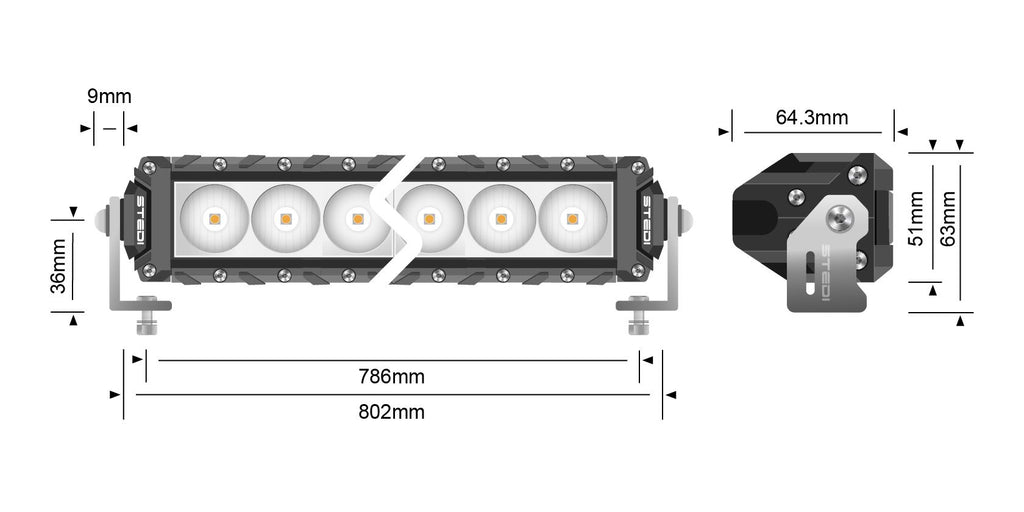

Our STEDI ST3K LED Light is was designed to bring a large amount of light to a small amount of space. With a total height of just 63mm (with the side brackets attached), you will find the ST3K is able to be mounted on your front bar or grill, whilst maintaining the factory look of your vehicle.





TIMELESS DESIGN.

The ST3K 31.5 Inch LED Light Bar utilizes the Pure Drive technology (of Type-X and ST4K fame), to deliver a powerful punch. The ST3K 31.5 Inch LED Light Bar can also be mounted in tight spaces, allowing it to suit a wide and unexpected range of vehicles.




THE NITTY
GRITTY.

MARKET LEADING PERFORMANCE.

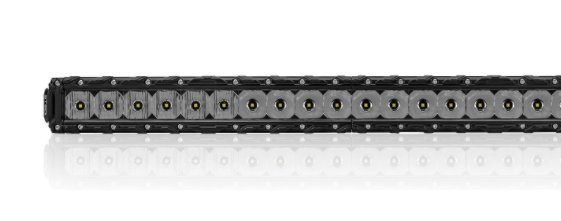

ST3K-30L features 30 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

6 Flood + 18 Spot + 6 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 601m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

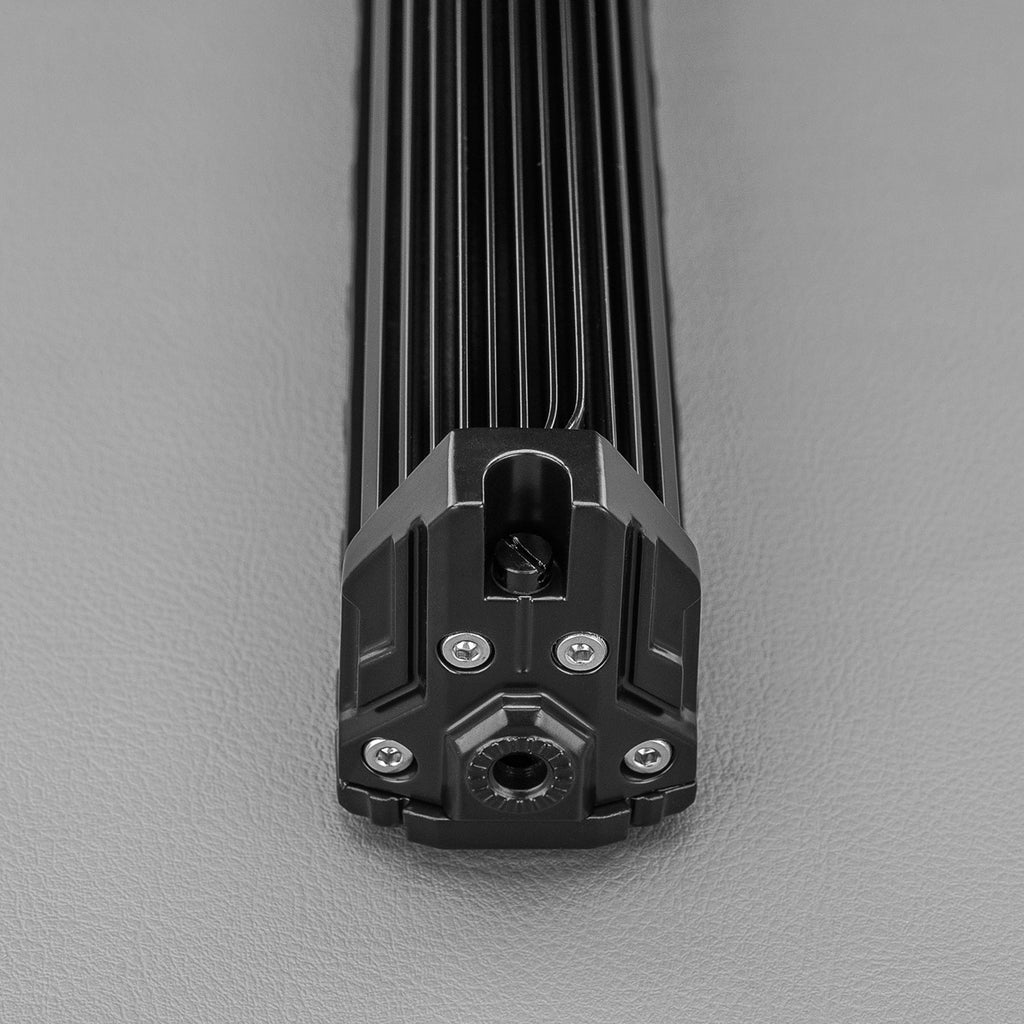

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

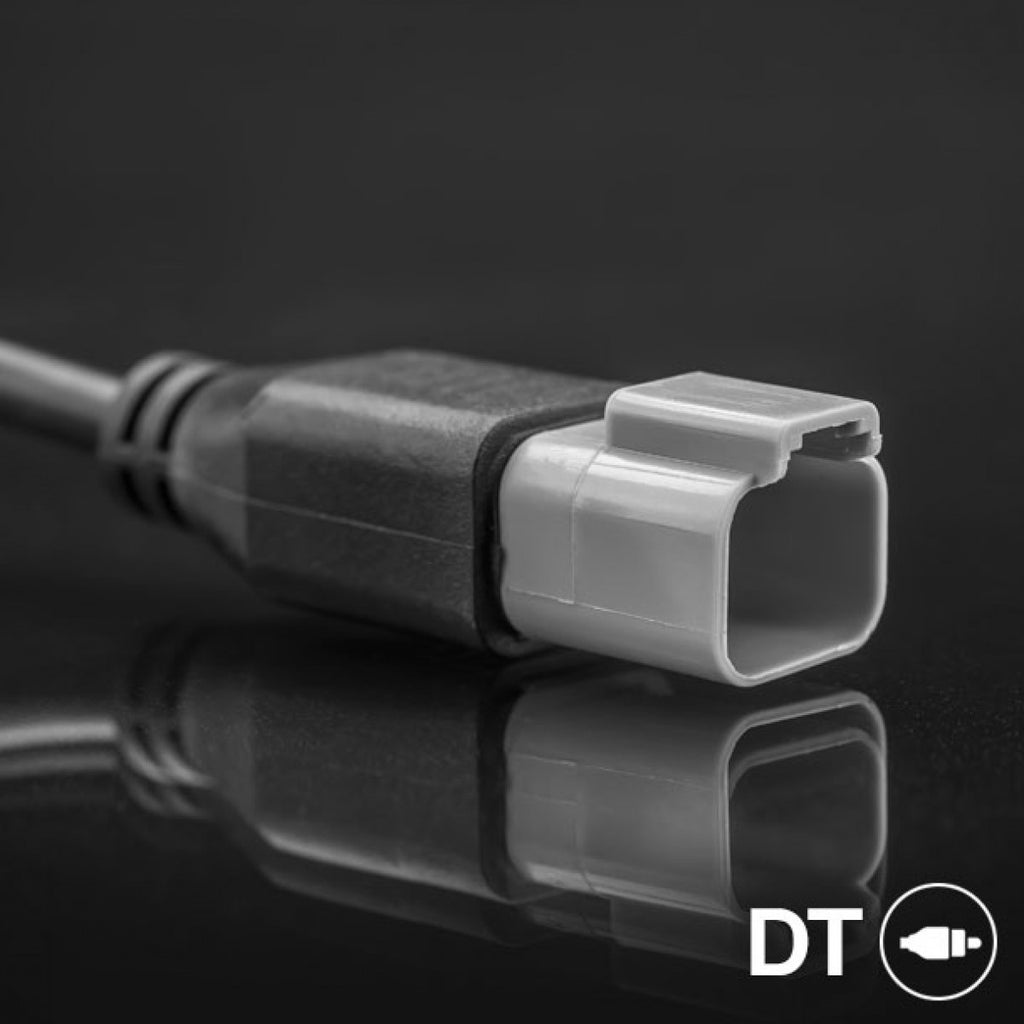

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

Includes our Easy-Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market, ours has built-in electronics making our harness compatible with even the most modern and sophisticated wiring systems

Backed by a 5 Year Replacement Warranty.






TECH SPECS

LED 30 x Osram Oslon White
Effective Lumen 6,150Lm
Peak Intensity (Candela) 364,800cd
Operating Voltage 10-30V DC
IP Rating IP68
Current Draw 6.5A @ 13.6v
Colour Temperature (CCT) 5700 Kelvin
Housing Material Aluminium Extrusion & Cast
Lens GE™ Lexan
Mounting Bracket Powder Coated 3mm Stainless Steel
Bolts and FIttings 3 Series Stainless Steel
Beam Type Flood Spot Combo
Life Span 50,000 Hours
Weight 2.640
Operating Environment  -40 - +50° Celsius

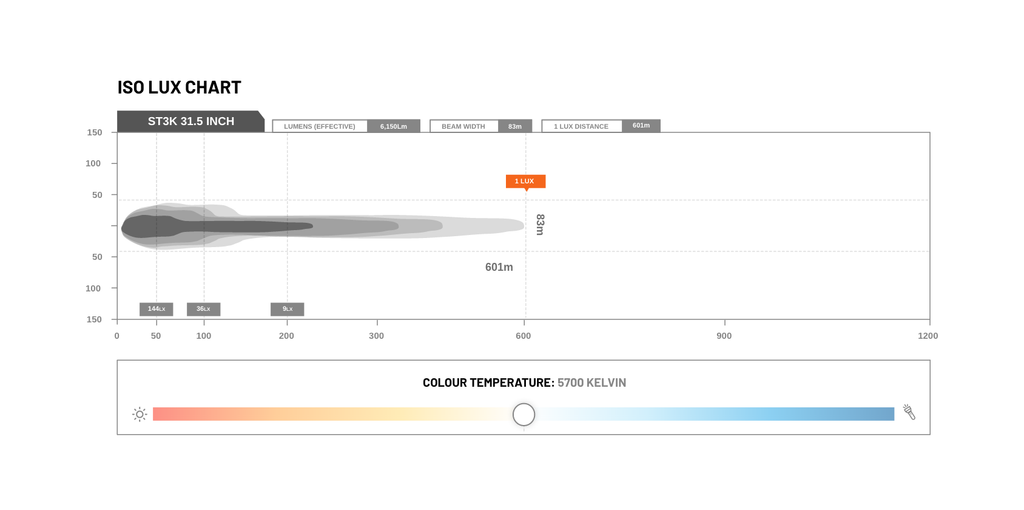

PHOTOMETRIC DATA
10 M 3,612 lX
50 M 144 Lx
100 M 36 Lx
200 M 9 Lx
601 M 1 Lx

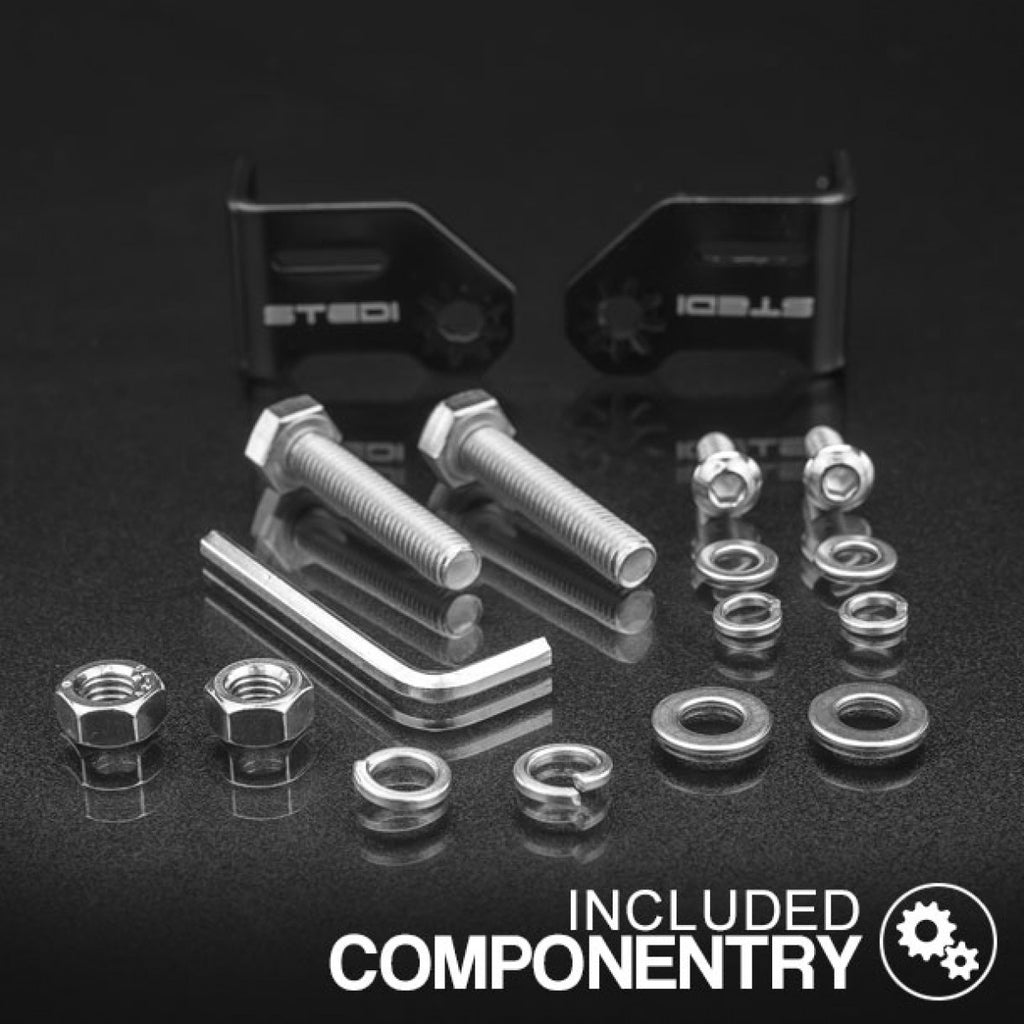

WHAT'S INCLUDED



  • ST3K 31.5inch LED LIGHT BAR
  • Stainless Fasteners

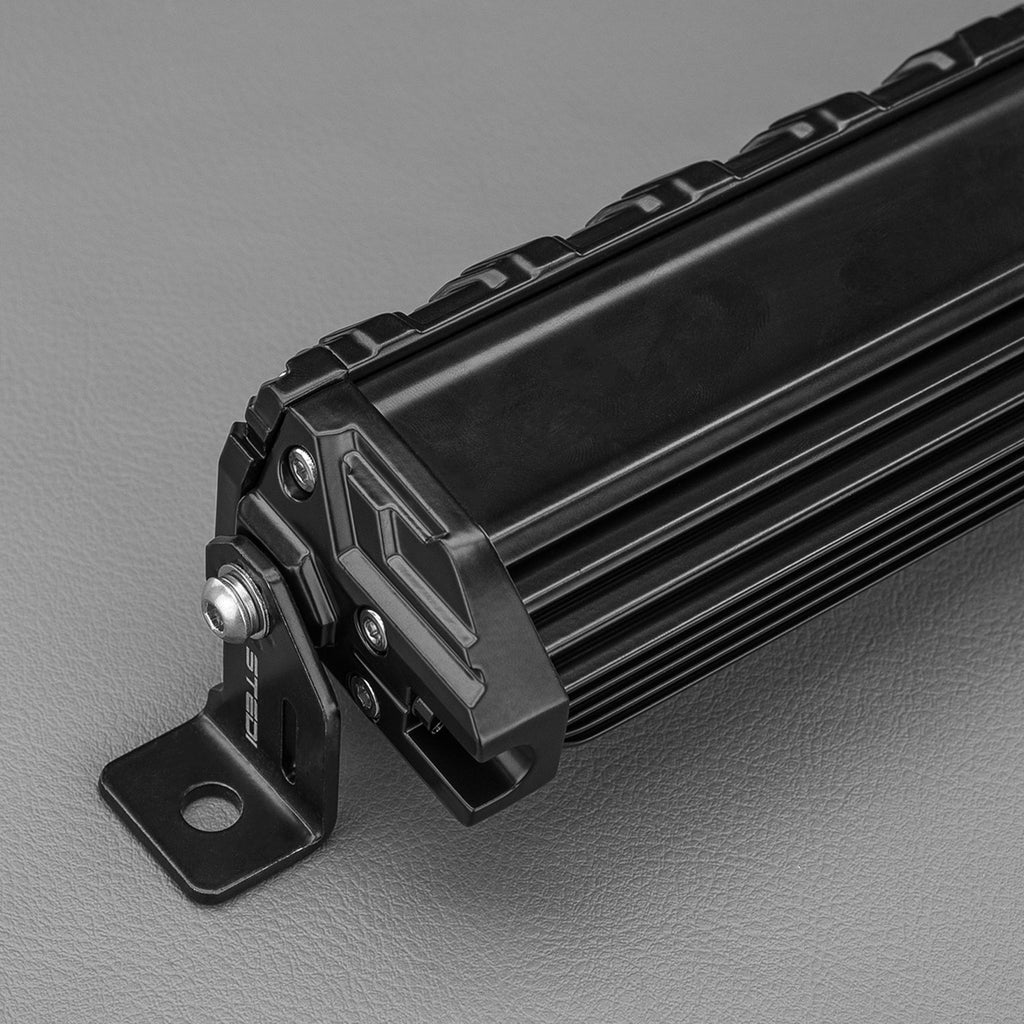

  • Stainless Steel Side Mounting Brackets
  • 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
  • H4 and HB3 adapters included
  • Wiring Instructions
